Features:

1. Open collector output

2. TTL compatible

3. High bit rate: I Mbit/s

4. Advanced CMR-10 kv/us

5. Ensure the center temperature: 0-70℃

6. Comply with ROHS

Application:

1. CMOS-LSTTL-TTL output interface

2. Telecommunications Equipment

3. Power transistor isolation in motor drive

4. Replacement of low-speed phototransistor optocoupler

5. Household appliances

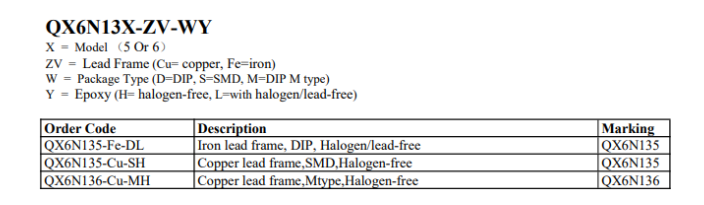

Encoding rules：

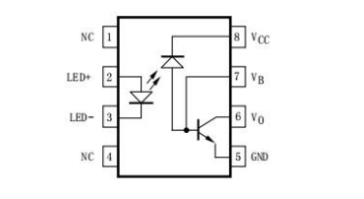

Outline structure drawing:

Package size:

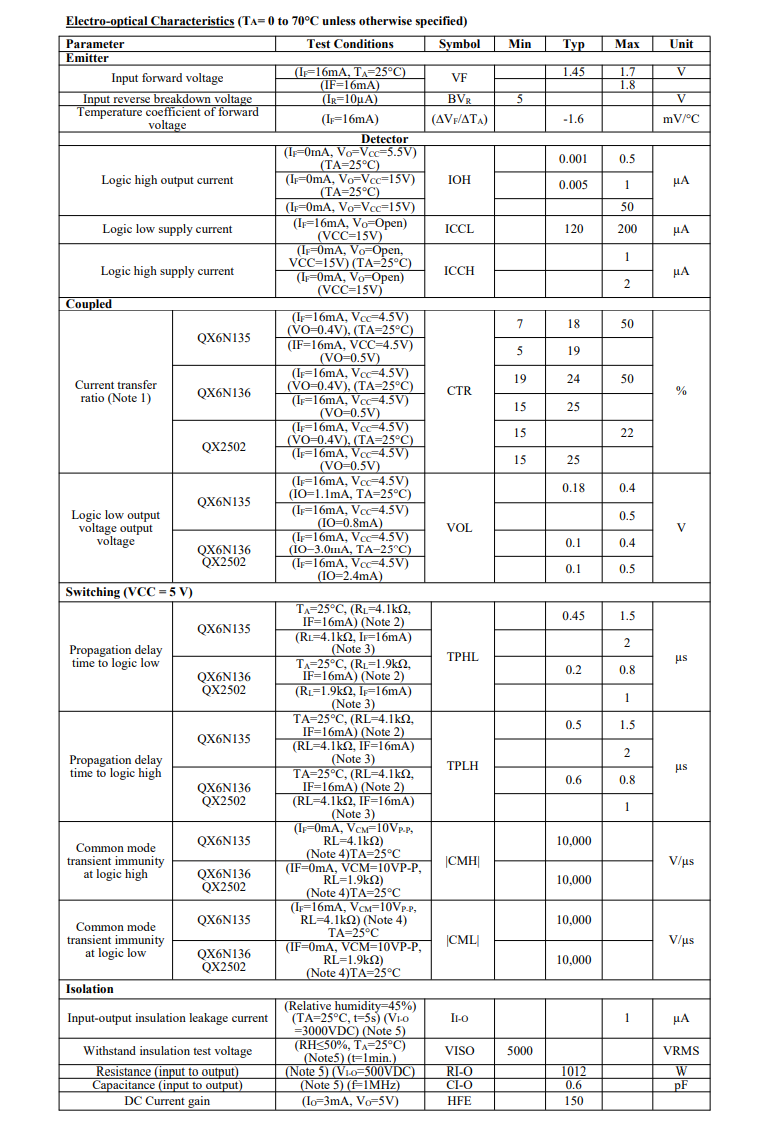

Electro-optical characteristics:

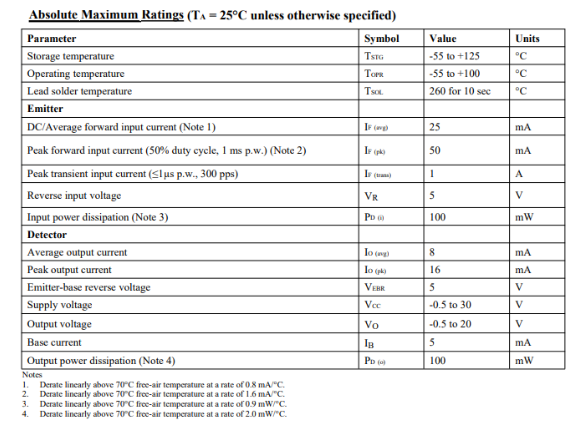

Absolute maximum ratings:
