Features:

1. Quick break, high surge resistance

2. Surface mount high current fuse

3. Wide range of rated current specifications from 20A to 60A

4. The highest rated DC voltage to 100V

5. The size is 10.25mm×3.20mm, square appearance

6. Working temperature of -55℃～125℃

7. Good environmental adaptability

8. Comply with ROHS standard, halogen-free

Application:

1. Storage system power supply

2. PC server cooling fan system

3. PC server voltage regulation module

4. Voltage Regulation Module

5. Base station power supply

6. High-end server/blade server

7. Battery Management System

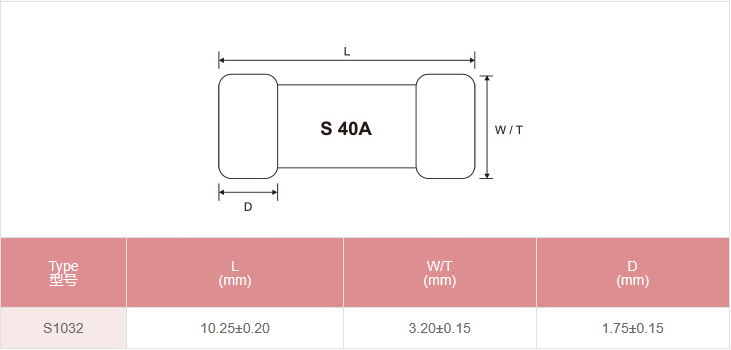

Outline structure drawing:

Certification Information：

Electrical characteristics:

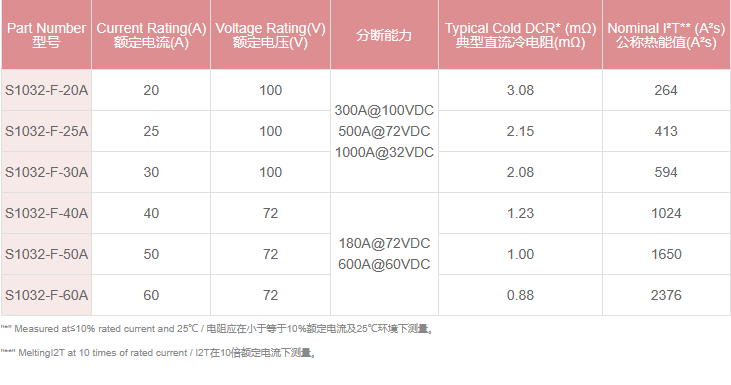

Electrical Specifications:
