Features:

1. Meet RoHS requirements

2. A pair of ceramic positive temperature coefficient thermistors with matching resistance in plastic package

3. In the field of telecommunications, the wide resistance range is from 10 to 50 Ω

4. Meet ITU-T standards

5. Operating temperature range:

0 ~ +85°C (V=Vmax)

-25 ~ +125°C (V=0)

6. Safety certification: UL/cUL, TUV

UL/cUL certificate number: E138827

TUV certificate number: R 50171789

Application：

1. Modem ADSL VoIP Modem

2. Customer Terminal Equipment (CPE)

3. Telecom Central Office (CO)

4. Access equipment (AE)

5. Main Distribution Frame (MDF)

6. Public Switched Telephone System (PSTN)

7. Switch

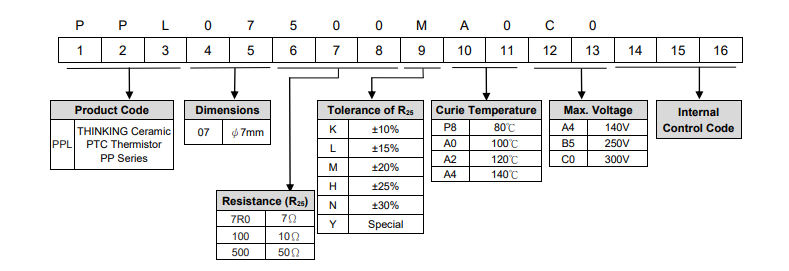

Encoding rules：

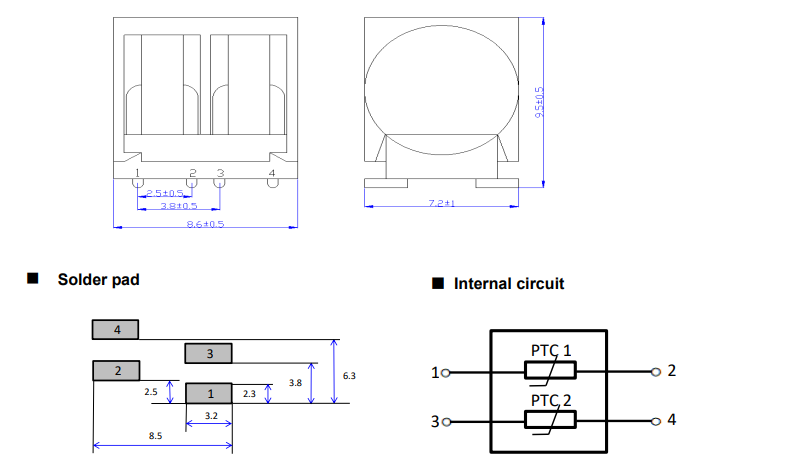

Outline structure drawing：

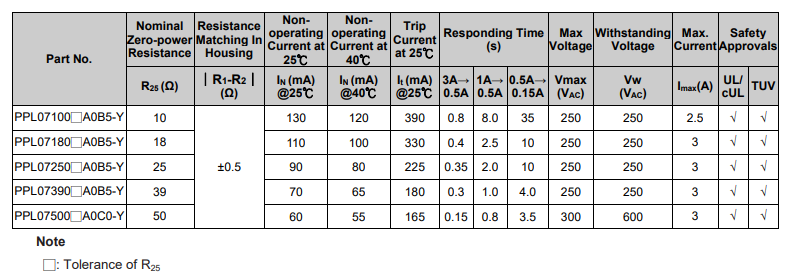

Electrical characteristics：

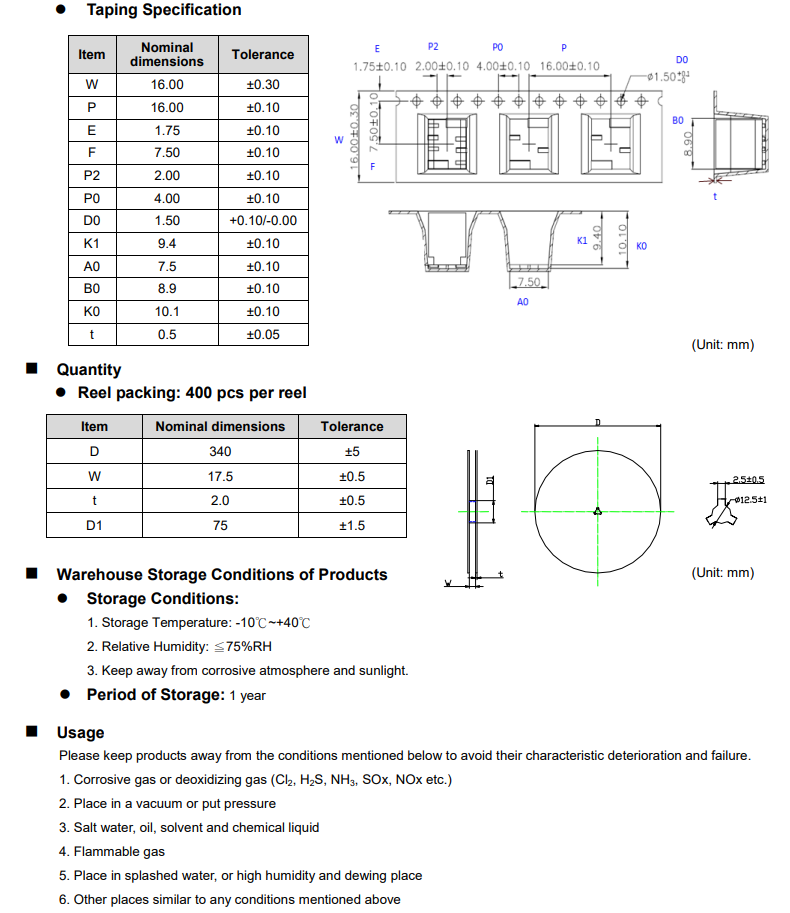

Packing:
