Features:

1. Meet RoHS requirements

2. Radial lead type

3. Wide resistance value range in the field of telecommunications: 7Ω ~50Ω

4. Meet ITU-T standards

5. Operating temperature range:

0 ~ +60°C (V=Vmax)

-25 ~+125°C (V=0)

6. Safety certification:

UL/cUL certificate number: E138827

TUV certificate number: R 50171789

Application:

1. Modem, ADSL VoIP modem

2. Customer Terminal Equipment (CPE)

3. Telecom Central Office (CO)

4. Access equipment (AE)

5. Main Distribution Frame (MDF)

6. Public Switched Telephone System (PSTN)

7. Switch

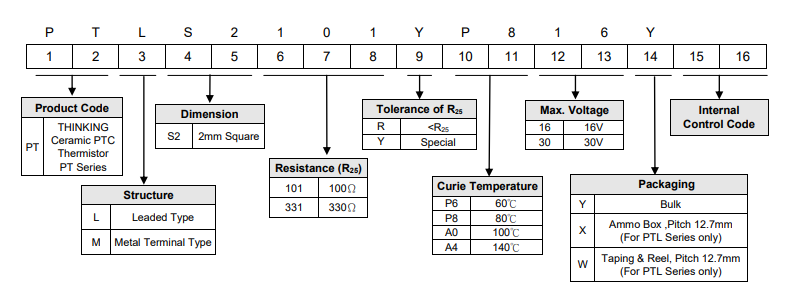

Encoding rules：

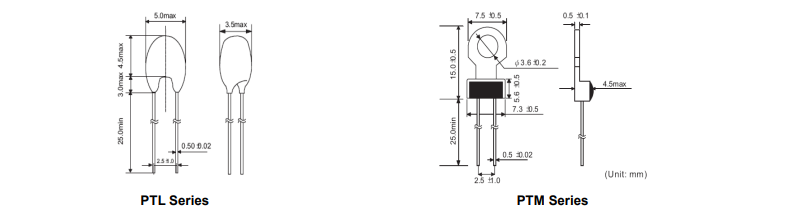

Outline structure drawing:

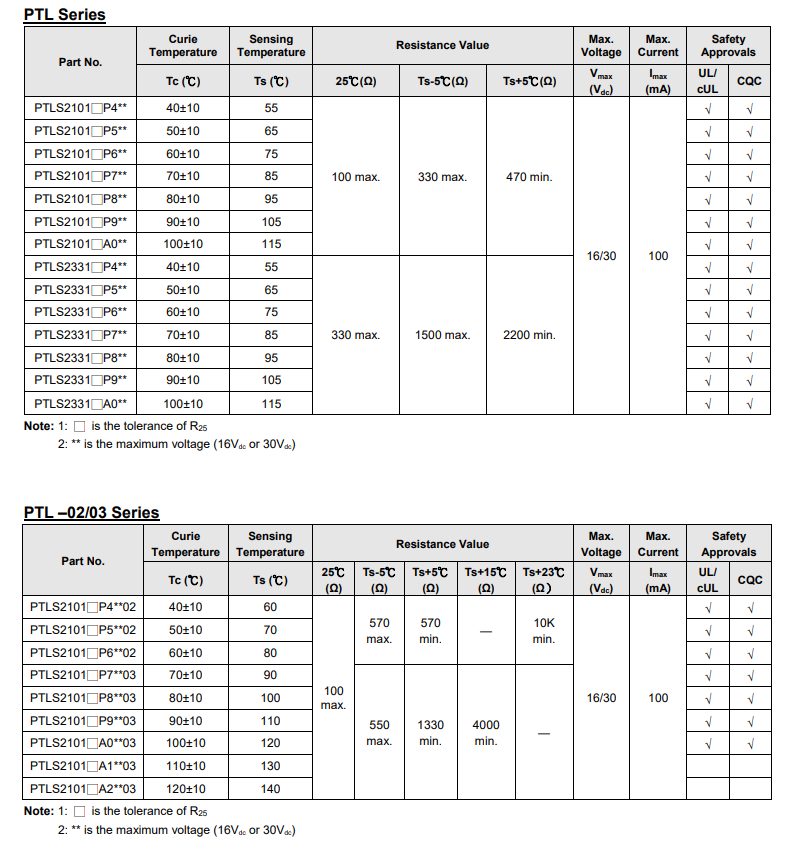

Electrical characteristics:

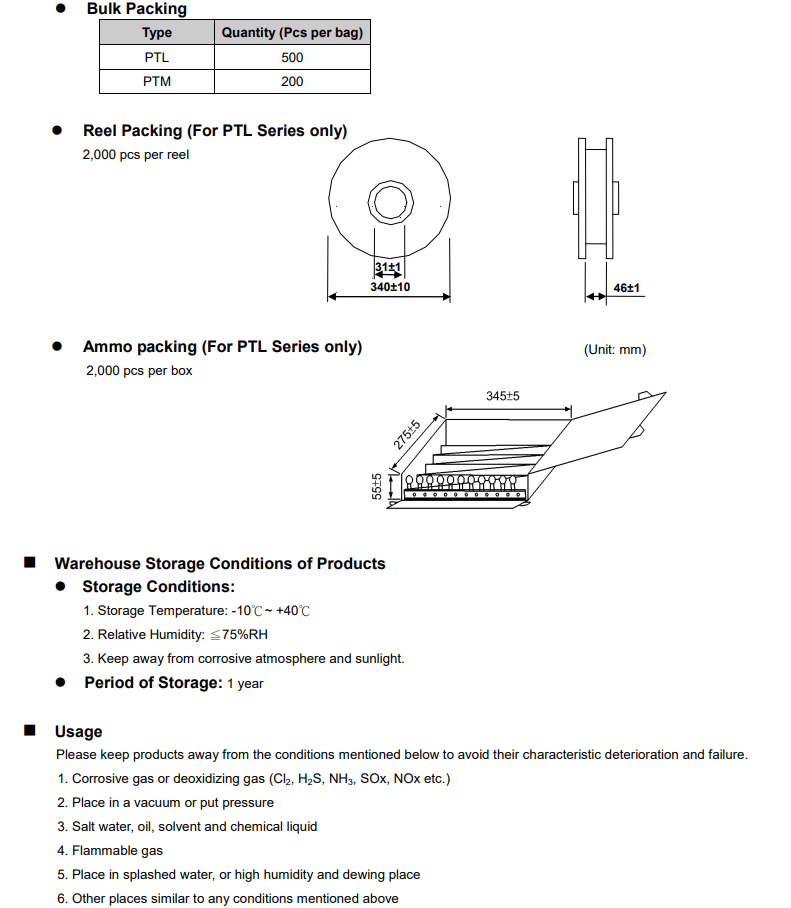

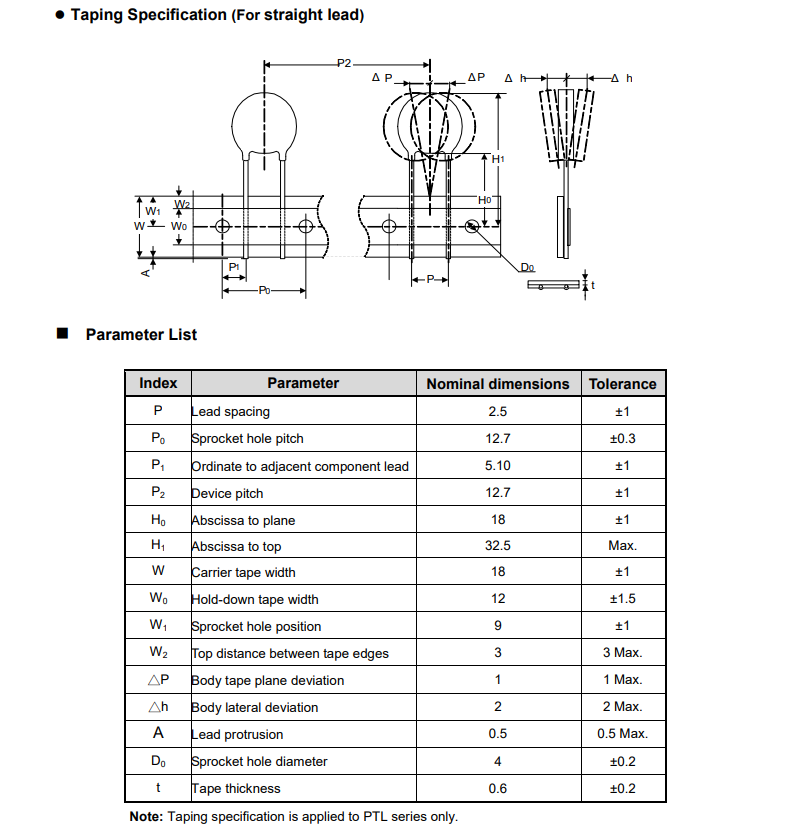

Packing：
