Features:

1. Ultra high speed – 10 MBit/s

2. Excellent CMR-10 kV/us

3. Double working voltage -480V

4. Output 8 at -40°C to +85°C

5. Logic gate output

6. Strobe output

7. Wired or open collector

Application:

1. CMOS-LSTTL-TTL output interface

2. Telecommunications Equipment

3. Power transistor isolation in motor drive

4. Replacement of low-speed phototransistor optocoupler

5. Household appliances

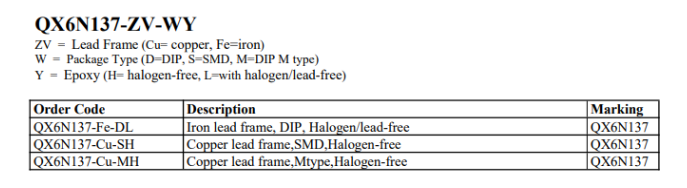

Encoding rules：

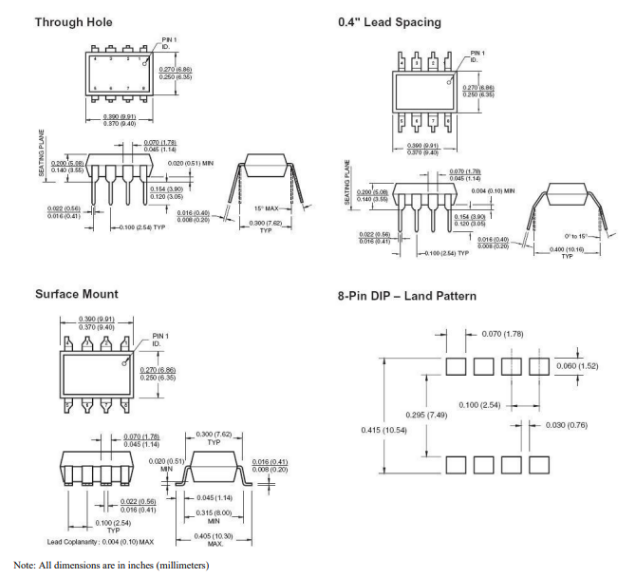

Outline structure drawing:

Package size:

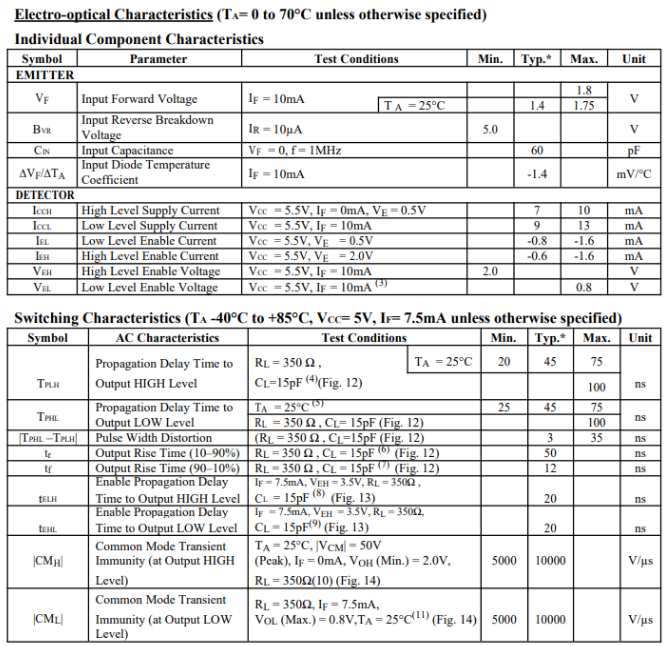

Electro-optical characteristics:

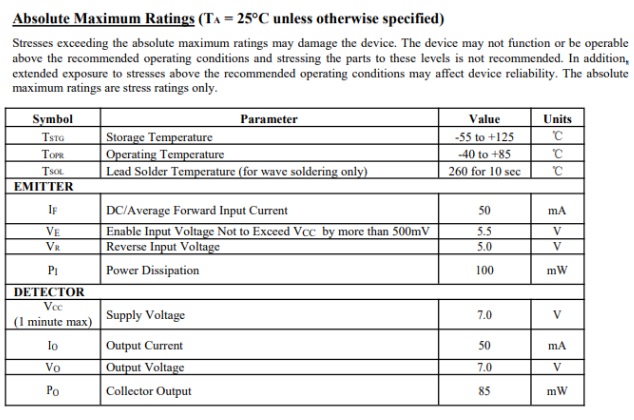

Absolute maximum ratings:

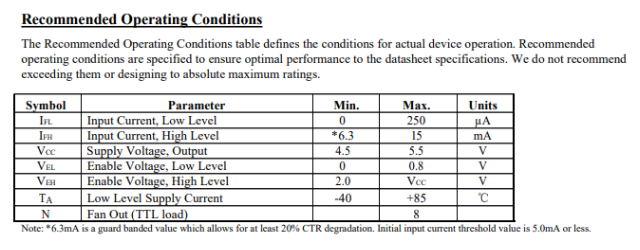

Recommended operating conditions:
